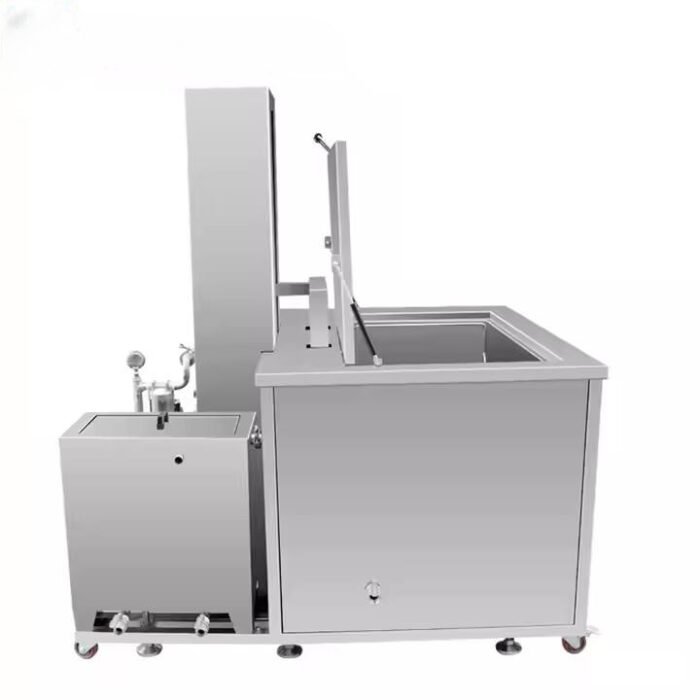

PLC Control Automatic Ultrasonic Parts Cleaner With Hydraulic Platform Lift for Truck Engine Components CR-1144GS 960L

Product Name Ultrasonic cleaner with Lift system and Filteration system

Product Model CR-1144GS

Capacity 960L

Inner tank size 1200*1000*800mm

Basket size 1150*980*750mm

Ultrasonic frequency 28khz or 40khz

Ultrasonic Power 7200W

Heating Power 24000W

Time adjustable 0~99Hours

Temperature adjustable Normal~95℃

Generator 4pcs of External ultrasonic generator

Power supply 3 phase AC380-440V 50/60Hz.

Inner tank material SUS304 2.0mm with Hard chrome plating

Basket 1 pcs of stainless steel basket

Machine size 2470*1690*1640mm.

Export wooden Packing size 2520*1740*1790mm.

Total Weight 800KGS

Function With ultrasonic cleaning,With oil filtering system,With hydraulic lift function, With PLC touch screen control.

Feature
1. stainless steel tank has resistance to wear and long work life.
2. tank capacity: 360Liter
3. with Stainless steel basket
4. Use just tab water, or industrial alcohol and solvent cleaner for more higher cleaning requirement
5. industrial control chip
microcontroller.flexible circuit boards control, more secure & stable
6. with drainage,basket,lid and Multi-direction castors
7. Transducer : Korea techinique
8. PCB board is independent research and development design production by chunrain
9. It can applied to clean cast iron, steel, stainless steel, brass, bronze
